How to use the Carousel to create a multi-page form?

From version 5.2 it is possible to use the Carousel as a form. This makes it easy to create multi-page forms.
In this tutorial we will use the Carousel to create a multi-page form with wizard-like layout.

Note: Before starting with this tutorial, make sure you have read the other Carousel related tutorials to understand the basics.

Step 1
Add the Carousel object to the page.

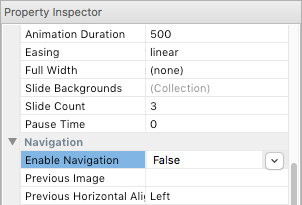

This demo uses external buttons to control the Carousel slide, so first lets disable the built-in navigation and pagination.

Step 2
In the properties of the Carousel, check 'Enable Form' so it behaves like a form. The settings are the same as a standard form so we will not get into details about that. The focus of this tutorial is on the multi-page layout of the form.

Step 3
Add 3 buttons below the Carousel to control the slides: Previous, Next and Submit (or Finish).

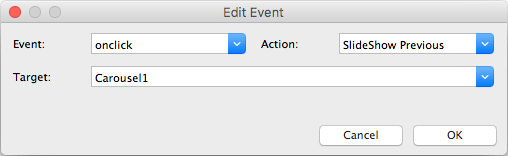

Add an event to the Previous button: onclick -> Slideshow Previous -> Target: Carousel1

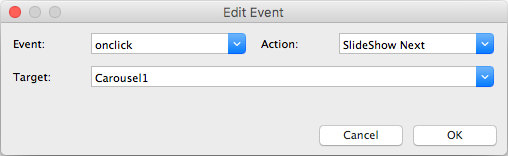

Add an event to the Next button: onclick -> Slideshow Next -> Target: Carousel1

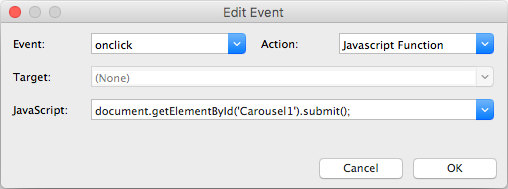

Add an event to the Submit button: onclick -> JavaScript: document.getElementById("Carousel1").submit();
This makes the button a submit button for the Carousel/Form without being part of Carousel itself.



Step 4
To give the buttons a different appearance for when they are enabled/disabled, we can use Styles.

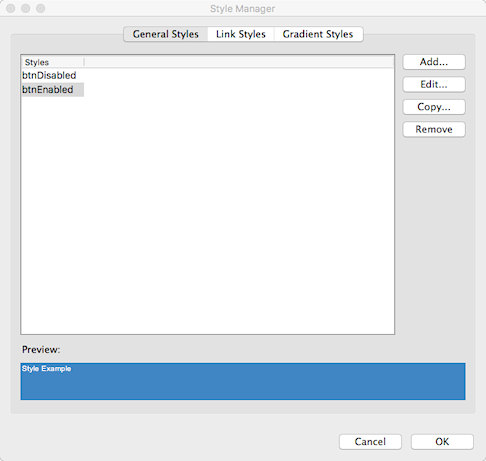

Open the Style Manager and create two new styles: btnEnabled, btnDisabled.
Style name: btnEnabled
background-color: #3370B7
border-color: #2E6DA4
border-style: solid
border-width: 1
font-family: Arial
font-size: 10
text-color: #FFFFFF


Style name: bntDisabled
background-color: #FFFFFF
border-color: #C0C0C0
border-style: solid
border-width: 1
font-family: Arial
font-size: 10
text-color: #C0C0C0
custom style: cursor: not-allowed; pointer-events: none;

Step 5
In the "Style' section of the buttons select 'btnDisabled' for all 3 buttons.
Step 6
Next we will dynamically enable/disable the buttons based on the current slide using Carousel Events.
activate[01] - First slide
bntNext: SetStyle -> btnEnabled
btnPrevious and btnSubmit: SetStyle -> btnDisabled

activate[02] - Second slide
bntNext and btnPrevious: SetStyle -> btnEnabled
bntSubmit: SetStyle -> btnDisabled

activate[03] - Third slide
btnPrevious and btnSubmit: SetStyle -> btnEnabled
bntNext: SetStyle -> btnDisabled


Step 7

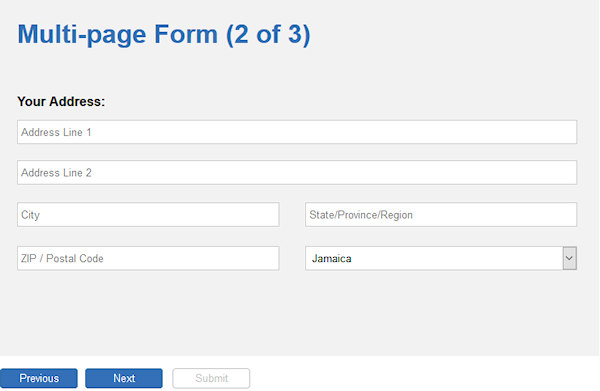

Finally we have to add some form controls for the user input, like editboxes, checkboxes etc.
For this demo we just added some random input fields...

Demo:
http://www.quickandeasywebbuilder.com/support/carouselwizard.html
